Jiaxing Xingjie Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 1.5 inch swivel caster wheels in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy premium 1.5 inch swivel caster wheels made in China here from our factory.
Products Description

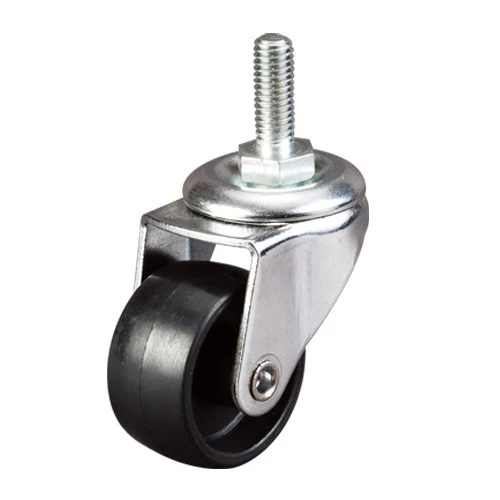

The 1.5 inch swivel caster wheel is a compact mobility solution engineered for light furniture, small equipment, display stands, and carts requiring reliable mobility with secure wheel locking. With a 25kg load capacity per caster and axle brake for wheel positioning, this compact caster provides reliable support with smooth 360° swiveling, excellent durability, and secure wheel locking - essential for environments where equipment needs to be moved efficiently and positioned safely.
The impact on your daily operations: When light furniture, small equipment, and display stands need to be repositioned for reconfiguration, cleaning, or daily use, compact, smooth-rolling casters with effective wheel locking make the difference between efficient workflow and safety concerns. The nylon wheel delivers excellent wear resistance and low rolling resistance - allowing equipment to move smoothly with minimal effort. The axle brake engages with a simple action, locking only the wheel (while the swivel remains free to rotate), allowing directional adjustment even when stationary. The flexible mounting options (stem or plate) ensure compatibility with various equipment types. The compact 40mm diameter with 20mm width is specifically engineered for applications where space is limited.
The nylon wheel offers excellent wear resistance, impact strength, and low rolling resistance - making it ideal for light to medium applications where reliability and durability are essential. Nylon maintains its structural integrity under moderate loads, resists wear from frequent use, and performs consistently across a range of floor types. Unlike softer materials that can deform or wear quickly, nylon provides long-lasting performance with minimal maintenance. Optional wheel materials (PU, TPR, PP) and bearing options (Axle Hole, Ball Bearing) are available for applications with specific floor protection, noise reduction, or performance requirements.
Available with threaded stem mounting (customizable) or top plate mounting for flexible installation across different equipment types. Available in 1.5″, 2″, 2.5″, and 3″ diameters with multiple wheel material and bearing options. The axle brake ensures secure wheel positioning when equipment needs to remain stationary - making this 1.5 inch swivel caster wheel the ideal choice for light furniture, display stands, and small equipment applications.
Technical Specifications
|
Parameter |
Specification |
|
Model No. |
15AA2ZHX106N |
|
Caster Type |
Swivel Caster with Axle Brake |
|
Wheel Diameter |
40 mm (1.5″) |
|
Wheel Width |
20 mm |
|
Wheel Material |
Nylon |
|
Load Capacity |
25 kg per caster |
|
Mounting Type |
Threaded Stem (customizable) or Top Plate (selectable) |
|
Offset |
21 mm |
|
Load Height |
59 mm |
|
Bearing Options |
Axle Hole, Ball Bearing |
|
Available Sizes |
1.5″, 2″, 2.5″, 3″ |
|
Wheel Options |
PU, TPR, Nylon, PP |
Key Features
25kg Load Capacity - reliable support for light furniture and equipment
Nylon Wheel - wear-resistant, impact-resistant, low rolling resistance

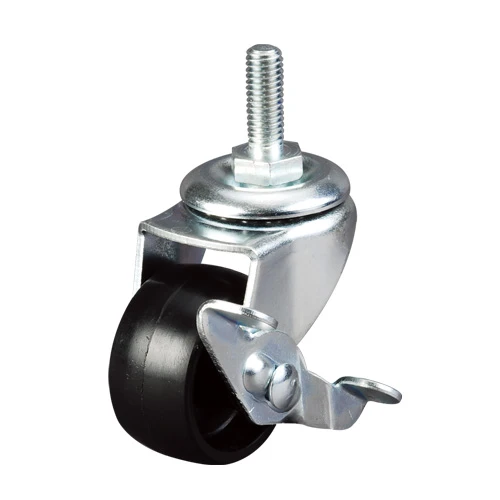

Axle Brake - locks wheel only (swivel remains free for directional adjustment)
Flexible Mounting Options - stem or plate mounting available for versatile installation
Smooth 360° Swivel Action - effortless steering and maneuverability
Multiple Size, Material & Bearing Options - 1.5″–3″ sizes with 4 wheel materials and 2 bearing types
Why Choose Xingteng TENG® Casters?
30+ Years of Manufacturing Excellence
Xingteng Group has been manufacturing casters since 1997, with manufacturing origins predating our official registration. With over 30 years of continuous innovation and quality improvement, our experience means we understand not just how to make casters, but how to make them right for your specific application - especially when it comes to compact swivel caster wheels for light furniture and equipment.
ISO 9001:2015 Certified Quality Management
Our quality management system is certified to ISO 9001:2015, ensuring consistent product quality, traceable production processes, and continuous improvement - exactly what furniture and equipment buyers expect from a reliable supplier.
TUV Product Certification
Multiple product series have passed TUV testing and certification - proof that our products meet internationally recognized safety and performance standards.
RoHS 2.0 Compliant
All products meet RoHS 2.0 European environmental protection standards, ensuring your supply chain remains compliant with international environmental regulations.
In-House Testing Laboratory
Our dedicated testing facility is equipped with dynamic loading testers, impact testers, static pressure testers, hardness testers, brake life testers, salt spray testers, optical profile projector, and caster creep tester - every 1.5 inch swivel caster wheel is verified before it leaves our factory.
30,000+ sqm Manufacturing Facility
Annual production capacity exceeding 10 million casters, with over 110 automated production machines including precision injection molding, automatic punching, riveting, and assembly lines.
TENG® - Our Registered Brand
TENG® is registered in China (since 2006) and internationally under the Madrid System in France, Germany, the United States, Japan, Australia, and Canada (since 2012) - proof of our long-term commitment to brand quality and global presence.
FAQ
Q1: What is the load capacity of this 1.5 inch swivel caster wheel?
A: This 1.5 inch swivel caster wheel has a load capacity of 25 kg per caster. For furniture, display stands, or equipment with four casters, the total capacity is 100 kg. However, please note that the effective load per caster should be calculated as Total Load ÷ 3 (allowing for uneven weight distribution) rather than Total Load ÷ 4.
Q2: What is an axle brake and how does it differ from other brake types?
A: An axle brake (featured on this model) locks only the wheel by applying pressure directly to the wheel axle - preventing rolling movement while the swivel mechanism remains free to rotate for directional adjustment. This is different from a side brake which locks the wheel via external pressure on the tread, or a total lock brake which locks both wheel and swivel. The axle brake provides secure wheel positioning while maintaining directional flexibility - ideal for applications where you want to prevent rolling but still need to adjust orientation.
Q3: What mounting options are available for this caster?
A: This caster is available with two mounting options to suit different equipment requirements: Threaded stem mounting - customizable stem sizes for flexible installation; or Top plate mounting - flat plate with bolt holes for secure attachment. Please specify your preferred mounting type when ordering and confirm dimensions with our sales team.
Q4: What are the advantages of nylon wheels?
A: Nylon wheels offer: Wear resistance - withstands frequent use across various floor types; Low rolling resistance - smooth rolling for easy pushing; Impact resistance - resists shocks and impacts without cracking; Durability - maintains structural integrity under moderate loads; Chemical resistance - resists oils, solvents, and many chemicals. These characteristics make nylon the preferred choice for light to medium applications where reliability and durability are essential.
Q5: What wheel material options are available for this caster?
A: This caster series is available with four wheel material options: Nylon - standard option offering excellent wear resistance, impact strength, and low rolling resistance; PU - excellent floor protection and wear resistance; TPR - quiet, non-marking operation; PP - lightweight and chemical-resistant. Choose based on your load, floor type, and application requirements.
Q6: What is the difference between Axle Hole and Ball Bearing options?
A: Axle Hole is a simple bearing design where the wheel rotates directly on the axle - cost-effective and suitable for light to moderate loads with occasional use. Ball Bearing uses precision ball bearings to provide smoother rolling with reduced friction - ideal for applications requiring frequent movement, smoother operation, and longer service life. Choose Axle Hole for cost-sensitive applications; choose Ball Bearing for enhanced performance and durability.
Q7: What equipment is this 1.5 inch swivel caster wheel suitable for?
A: This 1.5 inch swivel caster wheel is suitable for: Light furniture - small tables, side tables, and shelving units; Display stands - retail displays, product stands, and exhibition fixtures; Small equipment - small machines and office equipment; Carts - light-duty service carts and utility carts; Point of purchase displays - POP and promotional displays.
Q8: What is the difference between this swivel caster and a fixed caster?
A: A swivel caster (featured here) rotates 360° - offering maneuverability and steering capability, ideal for the front or all positions of furniture and carts. A fixed caster (also known as rigid caster) rolls only in a straight line - providing stable, controlled movement and eliminating unwanted swiveling. For furniture and display stands, swivel casters are typically used on the front for steering, while fixed casters are used on the rear for tracking and stability.
Q9: What are the available sizes for this caster series?
A: This caster series is available in 1.5-inch, 2-inch, 2.5-inch, and 3-inch diameters. The 1.5-inch option (featured here) offers the most compact size with a 59mm load height - ideal for light furniture and display applications where space is limited. Larger sizes provide better rolling efficiency over floor transitions and higher load heights.
Q10: What certifications does Xingteng hold?
A: Xingteng holds ISO 9001:2015 Quality Management certification, TUV Product Certification for multiple product series, and RoHS 2.0 environmental compliance. We are also a recognized AA-level "Contract-Honoring and Credit-Worthy Enterprise" in Zhejiang Province.
Q11: Does Xingteng offer custom swivel caster solutions?
A: Yes. With over 30 years of manufacturing experience and in-house engineering capabilities, we offer custom caster solutions including: custom stem sizes, special wheel materials, custom mounting plates, specific load capacities, bearing configurations, and application-specific designs. Contact our sales team to discuss your requirements.
Q12: What is the typical lead time for this 1.5 inch swivel caster wheel?
A: Standard lead time is typically 20-45 days depending on order quantity, wheel material selection, mounting type, and size specification. For urgent requirements, please contact our sales team for expedited options. Large-volume orders may require additional lead time - we will confirm exact timing at the time of order placement.
