Jiaxing Xingjie Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 4 inch casters with brakes in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy premium 4 inch casters with brakes made in China here from our factory.
Products Description

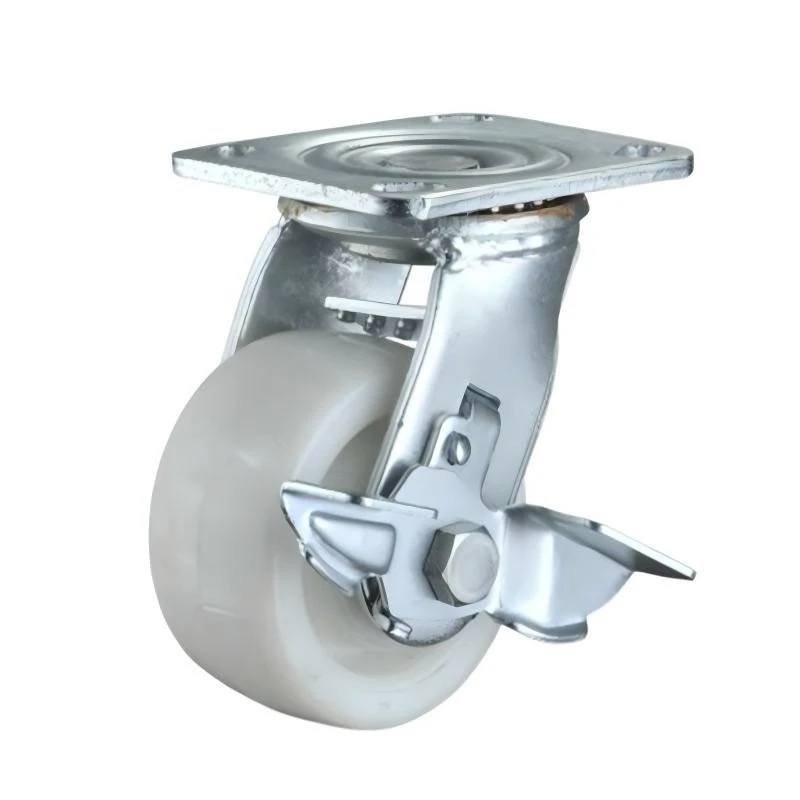

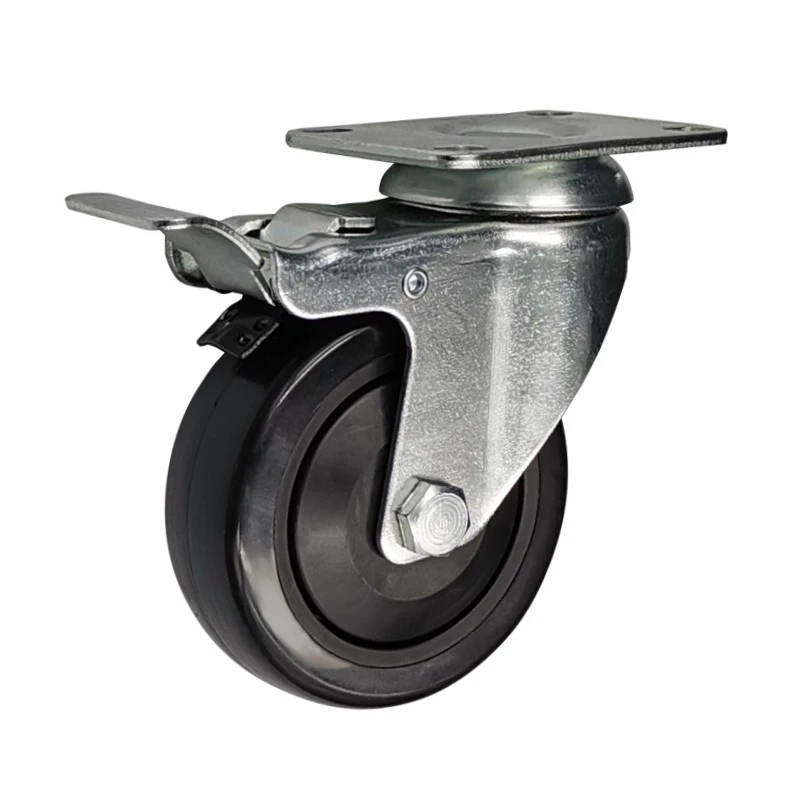

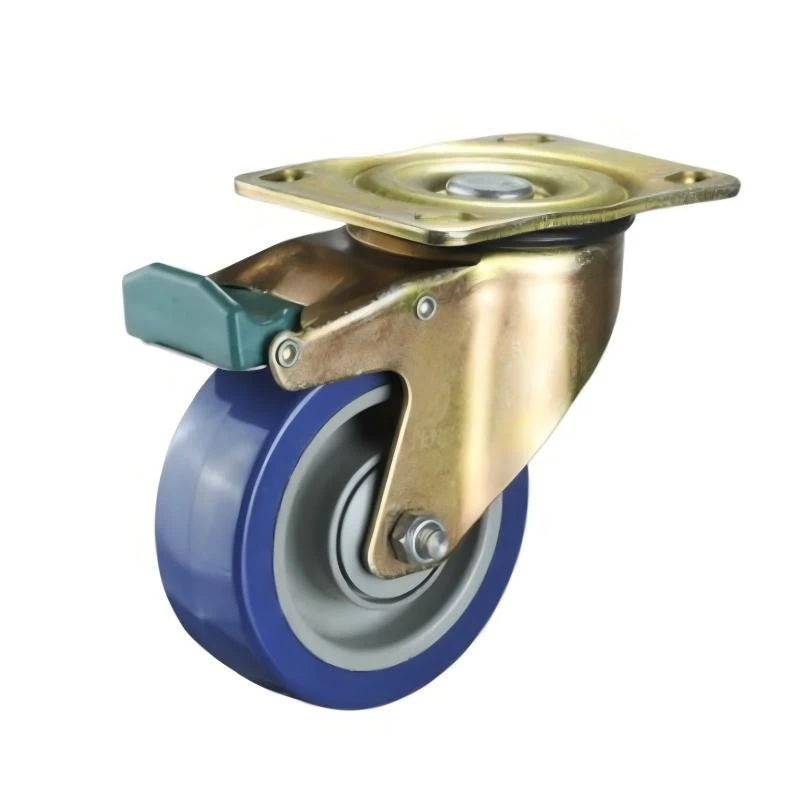

The 4 inch caster with brake is a versatile mobility solution engineered for industrial carts, equipment, furniture, and commercial applications. With a 140kg load capacity per caster and total lock brake for complete stationary security, this caster provides reliable support with stable rolling performance, effortless maneuverability, and secure positioning - essential for environments where equipment must be moved efficiently and positioned safely.
The impact on your daily operations: When industrial carts, equipment, and furniture need to be repositioned and then secured in place for loading, unloading, or stationary operation, reliable casters with effective braking are essential for safety and efficiency. The solid rubber wheel delivers quiet, non-marking rolling with excellent shock absorption - protecting floors and reducing noise in workshops and commercial environments. The total lock brake engages with a simple foot press, locking both the wheel and swivel mechanism to keep equipment completely stationary during operation. The Double Ball Bearing ensures smooth rolling with minimal friction, making heavy loads easier to move with controlled effort. The 100mm diameter with 36mm width provides good load distribution and rolling efficiency.
The solid rubber wheel offers excellent shock absorption, quiet operation, and floor protection - making it ideal for industrial and commercial applications where vibration dampening and noise reduction are priorities. Unlike hard plastic or nylon wheels that transmit vibration, rubber provides a cushioned ride and smooth rolling performance. Unlike pneumatic tires, solid rubber requires no maintenance and is immune to punctures, providing reliable performance in demanding environments. Optional wheel materials (PU, Nylon, PP) are available for applications with specific wear resistance, chemical resistance, or floor protection requirements.
Available with top plate mounting for secure attachment to carts, equipment, and furniture. Available in 4″ and 5″ diameters with multiple wheel material options and Double Ball Bearing as standard. The total lock brake ensures complete stationary security when equipment needs to remain in position - making this 4 inch caster with brake the ideal choice for industrial carts, equipment, and furniture applications.
Technical Specifications
|
Parameter |
Specification |
|
Model No. |
324Q1ZDX440R |
|
Caster Type |
Swivel Caster with Total Lock Brake |
|
Wheel Diameter |
100 mm (4″) |
|
Wheel Width |
36 mm |
|
Wheel Material |
Solid Rubber |
|
Load Capacity |
140 kg per caster |
|
Mounting Type |
Top Plate (dimensions available upon request) |
|
Offset |
41 mm |
|
Load Height |
130 mm |
|
Bearing Type |
Double Ball Bearing |
|
Available Sizes |
4″, 5″ |
|
Wheel Options |
PU, Nylon, PP, Rubber |
Key Features
140kg Load Capacity - reliable support for industrial carts and equipment
Solid Rubber Wheel - quiet operation, shock absorption, and floor protection
Total Lock Brake - locks both wheel and swivel for complete stationary security
Double Ball Bearing - smooth rolling with reduced friction for easy movement
Smooth 360° Swivel Action - effortless steering and maneuverability
Multiple Size & Material Options - 4″–5″ sizes with 4 wheel material options
Why Choose Xingteng TENG® Casters?
30+ Years of Manufacturing Excellence
Xingteng Group has been manufacturing casters since 1997, with manufacturing origins predating our official registration. With over 30 years of continuous innovation and quality improvement, our experience means we understand not just how to make casters, but how to make them right for your specific application - especially when it comes to swivel casters with brakes for industrial and commercial applications.
ISO 9001:2015 Certified Quality Management
Our quality management system is certified to ISO 9001:2015, ensuring consistent product quality, traceable production processes, and continuous improvement - exactly what industrial buyers expect from a reliable supplier.
TUV Product Certification
Multiple product series have passed TUV testing and certification - proof that our products meet internationally recognized safety and performance standards.
RoHS 2.0 Compliant
All products meet RoHS 2.0 European environmental protection standards, ensuring your supply chain remains compliant with international environmental regulations.
In-House Testing Laboratory
Our dedicated testing facility is equipped with dynamic loading testers, impact testers, static pressure testers, hardness testers, brake life testers, salt spray testers, optical profile projector, and caster creep tester - every 4 inch caster with brake is verified before it leaves our factory.
30,000+ sqm Manufacturing Facility
Annual production capacity exceeding 10 million casters, with over 110 automated production machines including precision injection molding, automatic punching, riveting, and assembly lines.
TENG® - Our Registered Brand
TENG® is registered in China (since 2006) and internationally under the Madrid System in France, Germany, the United States, Japan, Australia, and Canada (since 2012) - proof of our long-term commitment to brand quality and global presence.
FAQ
Q1: What is the load capacity of this 4 inch caster with brake?
A: This 4 inch caster with brake has a load capacity of 140 kg per caster. For carts, equipment, or furniture with four casters, the total capacity is 560 kg. However, please note that the effective load per caster should be calculated as Total Load ÷ 3 (allowing for uneven weight distribution) rather than Total Load ÷ 4.
Q2: What is a total lock brake and why is it important?
A: A total lock brake locks both the wheel (preventing rolling) and the swivel mechanism (preventing rotation) simultaneously. This is important for: Stationary security - equipment remains completely fixed during loading and use; Safety - prevents unexpected movement on sloping surfaces; Stability - ensures equipment stays in position during operations. This brake type is essential for applications where equipment must remain completely secure when stationary.
Q3: What is the difference between a total lock brake and a side brake?
A: A total lock brake (featured on this model) locks both the wheel and the swivel mechanism, completely fixing the caster in position. A side brake locks only the wheel - the swivel remains free to rotate, allowing directional adjustment even when stationary. Choose total lock brake for complete stationary security on sloping surfaces or where equipment must remain completely fixed; choose side brake for applications where directional flexibility while locked is beneficial.
Q4: What are the advantages of solid rubber wheels?
A: Solid rubber wheels offer: Superior shock absorption - cushions impacts and smooths out uneven surfaces; Quiet operation - significantly reduces rolling noise; Floor protection - non-marking and gentle on floors; Good traction - provides grip on various surfaces; No maintenance - no air pressure to check or maintain; Puncture-proof - immune to flats and leaks. These characteristics make solid rubber ideal for industrial and commercial applications.
Q5: What wheel material options are available for this caster?
A: This caster series is available with four wheel material options: Solid Rubber - standard option offering superior shock absorption and quiet operation; PU - excellent wear resistance and floor protection; Nylon - superior impact resistance and durability; PP - lightweight and chemical-resistant. Choose based on your load, floor type, and application requirements.
Q6: What is the advantage of the Double Ball Bearing?
A: The Double Ball Bearing provides: Smooth rolling - low rolling resistance for effortless movement; Reduced friction - less wear on bearing components for extended service life; Even load distribution - two rows of balls distribute load more evenly, reducing stress on each bearing. This bearing type is ideal for applications requiring smooth, reliable performance under heavy loads.
Q7: What equipment is this 4 inch caster with brake suitable for?
A: This 4 inch caster with brake is suitable for: Industrial carts - workshop carts, service carts, and utility carts; Equipment - mobile equipment and machinery stands; Furniture - heavy furniture, worktables, and fixtures; Warehouse equipment - warehouse carts and trolleys; Commercial equipment - retail fixtures and display stands.
Q8: Is this caster suitable for heavy duty applications?
A: Yes. This caster is designed for heavy duty applications with a 140kg load capacity per caster, a solid rubber wheel for shock absorption, and a Double Ball Bearing for smooth performance. It is suitable for industrial carts, equipment, and furniture requiring reliable, durable mobility with secure braking.
Q9: What is the mounting specification for this caster?
A: This caster uses top plate mounting for secure attachment. The robust top plate design ensures stable load distribution and reliable performance. Please contact our sales team for detailed plate dimension specifications and bolt hole patterns to confirm compatibility with your equipment.
Q10: What are the available sizes for this caster series?
A: This caster series is available in 4-inch and 5-inch diameters. The 4-inch option (featured here) offers a compact size with a 130mm load height - ideal for applications where space is limited. The 5-inch option provides better rolling efficiency over floor transitions and a higher load height.
Q11: What certifications does Xingteng hold?
A: Xingteng holds ISO 9001:2015 Quality Management certification, TUV Product Certification for multiple product series, and RoHS 2.0 environmental compliance. We are also a recognized AA-level "Contract-Honoring and Credit-Worthy Enterprise" in Zhejiang Province.
Q12: What is the typical lead time for this 4 inch caster with brake?
A: Standard lead time is typically 20-45 days depending on order quantity, wheel material selection, and size specification. For urgent requirements, please contact our sales team for expedited options. Large-volume orders may require additional lead time - we will confirm exact timing at the time of order placement.
