Jiaxing Xingjie Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 5 inch heavy duty casters in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy premium 5 inch heavy duty casters made in China here from our factory.
Products Description

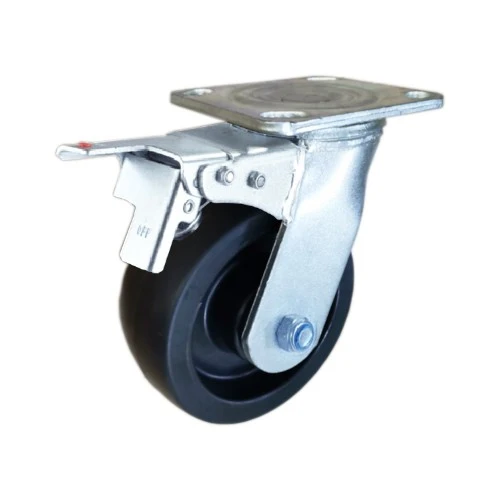

The 5 inch heavy duty caster is a versatile mobility solution engineered for industrial carts, equipment, material handling carts, and demanding workshop applications. With a 250kg load capacity per caster and smooth 360° swivel action, this heavy duty swivel caster provides reliable support with stable rolling performance and effortless maneuverability - essential for industrial environments where heavy loads must be moved efficiently and safely.
The impact on your daily operations: When industrial carts, equipment, and material handling systems need to be repositioned for maintenance, loading, or daily operation, reliable high-capacity casters with smooth swiveling make the difference between efficient workflow and unnecessary downtime. The PA (nylon) wheel delivers excellent wear resistance, high load capacity, and low rolling resistance - allowing heavy loads to move smoothly with minimal effort. The smooth 360° swivel action ensures effortless steering in tight spaces and narrow aisles. The 125mm diameter with 38mm width provides good load distribution and rolling efficiency for demanding industrial applications.
The PA (nylon) wheel offers exceptional impact resistance, wear resistance, and high load capacity - making it ideal for demanding industrial environments where casters encounter floor joints, debris, and constant heavy use. Nylon maintains its structural integrity under heavy loads, resists deformation, and provides reliable performance even in high-traffic industrial operations. Optional wheel materials (PU, PP, Sandwich) and bearing options (Ball Bearing, Double Ball Bearing) are available for applications with specific floor protection, noise reduction, or performance requirements.
Available with top plate mounting (105 × 80mm, bolt hole spacing 80/76 × 60mm) for secure attachment to industrial carts, equipment, and material handling systems. Available in 5″ and 6″ diameters with multiple wheel material and bearing options. The smooth 360° swivel action ensures effortless steering and maneuverability - making this 5 inch heavy duty caster the ideal choice for industrial carts, equipment, and material handling applications.
Technical Specifications
|
Parameter |
Specification |
|
Model No. |
1035S1ZSX570N |
|
Caster Type |
Swivel Caster |
|
Wheel Diameter |
125 mm (5″) |
|
Wheel Width |
38 mm |
|
Wheel Material |
PA (Nylon) |
|
Load Capacity |
250 kg per caster |
|
Mounting Type |
Top Plate |
|
Top Plate Size |
105 × 80 mm |
|
Bolt Hole Spacing |
80 / 76 × 60 mm |
|
Bolt Hole Diameter |
11 × 9 mm |
|
Offset |
40 mm |
|
Load Height |
155 mm |
|
Bearing Options |
Ball Bearing, Double Ball Bearing |
|
Available Sizes |
5″, 6″ |
|
Wheel Options |
PU, Nylon, PP, Sandwich |
Key Features
250kg Load Capacity - heavy-duty support for industrial carts and equipment
PA (Nylon) Wheel - wear-resistant, impact-resistant, high load capacity
Smooth 360° Swivel Action - effortless steering and maneuverability in tight spaces
Top Plate Mounting - 105 × 80mm plate for secure attachment
Multiple Bearing Options - Ball Bearing or Double Ball Bearing available
Multiple Size & Material Options - 5″–6″ sizes with 4 wheel material options
Why Choose Xingteng TENG® Casters?
30+ Years of Manufacturing Excellence
Xingteng Group has been manufacturing casters since 1997, with manufacturing origins predating our official registration. With over 30 years of continuous innovation and quality improvement, our experience means we understand not just how to make casters, but how to make them right for your specific application - especially when it comes to heavy duty swivel casters for industrial applications.
ISO 9001:2015 Certified Quality Management
Our quality management system is certified to ISO 9001:2015, ensuring consistent product quality, traceable production processes, and continuous improvement - exactly what industrial buyers expect from a reliable supplier.
TUV Product Certification
Multiple product series have passed TUV testing and certification - proof that our products meet internationally recognized safety and performance standards.
RoHS 2.0 Compliant
All products meet RoHS 2.0 European environmental protection standards, ensuring your supply chain remains compliant with international environmental regulations.
In-House Testing Laboratory
Our dedicated testing facility is equipped with dynamic loading testers, impact testers, static pressure testers, hardness testers, brake life testers, salt spray testers, optical profile projector, and caster creep tester - every 5 inch heavy duty caster is verified before it leaves our factory.
30,000+ sqm Manufacturing Facility
Annual production capacity exceeding 10 million casters, with over 110 automated production machines including precision injection molding, automatic punching, riveting, and assembly lines.
TENG® - Our Registered Brand
TENG® is registered in China (since 2006) and internationally under the Madrid System in France, Germany, the United States, Japan, Australia, and Canada (since 2012) - proof of our long-term commitment to brand quality and global presence.
FAQ
Q1: What is the load capacity of this 5 inch heavy duty caster?
A: This 5 inch heavy duty caster has a load capacity of 250 kg per caster. For industrial carts or equipment with four casters, the total capacity is 1,000 kg. However, please note that the effective load per caster should be calculated as Total Load ÷ 3 (allowing for uneven weight distribution) rather than Total Load ÷ 4.
Q2: Is this caster available with a brake?
A: This standard model (1035S1ZSX570N) is a swivel caster without brake. However, brake options are available upon request - including side brake and total lock brake configurations. If you require locking functionality for your industrial carts or equipment, please contact our sales team to specify your brake requirements.
Q3: Is this a steel caster or a pneumatic caster?
A: This caster features a PA (nylon) wheel with a zinc-plated steel bracket - it is not a steel wheel or pneumatic caster. Nylon wheels offer several advantages over pneumatic casters for industrial applications: No maintenance - no air pressure to check; Puncture-proof - immune to flats and leaks; High load capacity - supports heavy loads without deformation; Longer service life - more durable in demanding environments. For applications requiring steel wheels or pneumatic casters, please contact our sales team for alternative configurations.
Q4: What is the mounting specification for this caster?
A: This caster uses top plate mounting with the following specifications: Top plate size - 105 × 80mm; Bolt hole spacing - 80 / 76 × 60mm; Bolt hole diameter - 11 × 9mm (slotted holes for adjustment flexibility). This mounting pattern is compatible with many standard industrial cart and equipment configurations. Please confirm compatibility with your equipment before ordering. For stem mounting requirements, please contact our sales team for alternative options.
Q5: What is the difference between Ball Bearing and Double Ball Bearing?
A: Ball Bearing uses a single row of precision balls to provide smooth rolling with reduced friction - suitable for most industrial applications requiring reliable performance. Double Ball Bearing uses two rows of balls to handle both radial and moderate thrust loads - providing even smoother rolling, better load distribution, and longer service life. Choose Double Ball Bearing for applications requiring frequent movement and superior performance; choose Ball Bearing for standard industrial applications.
Q6: What wheel material options are available for this caster?
A: This caster series is available with four wheel material options: PA (Nylon) - standard option offering excellent wear resistance, impact strength, and high load capacity; PU - excellent floor protection and wear resistance; PP - lightweight and chemical-resistant; Sandwich wheel - combines materials for balanced performance. Choose based on your load, floor type, and application requirements.
Q7: What equipment is this 5 inch heavy duty caster suitable for?
A: This 5 inch heavy duty caster is suitable for: Industrial carts - workshop carts, service carts, and utility carts; Material handling equipment - platform trucks and transfer carts; Equipment - mobile equipment and machinery stands; Warehouse equipment - heavy-duty warehouse carts and trolleys; Industrial applications - demanding environments requiring reliable mobility.
Q8: What are the available sizes for this caster series?
A: This caster series is available in 5-inch and 6-inch diameters. The 5-inch option (featured here) offers the best balance of load capacity, rolling efficiency, and load height (155mm) for most industrial applications. The 6-inch option provides better rolling efficiency over floor transitions and a higher load height.
Q9: Is this caster suitable for heavy duty applications?
A: Yes. This caster is designed for heavy duty applications with a 250kg load capacity per caster, a PA (nylon) wheel for high load capacity, and Ball Bearing or Double Ball Bearing options for smooth performance. It is suitable for industrial carts, equipment, and material handling systems requiring reliable, durable mobility.
Q10: What certifications does Xingteng hold?
A: Xingteng holds ISO 9001:2015 Quality Management certification, TUV Product Certification for multiple product series, and RoHS 2.0 environmental compliance. We are also a recognized AA-level "Contract-Honoring and Credit-Worthy Enterprise" in Zhejiang Province.
Q11: Does Xingteng offer custom caster solutions?
A: Yes. With over 30 years of manufacturing experience and in-house engineering capabilities, we offer custom caster solutions including: special wheel materials, custom mounting plates, specific load capacities, brake configurations, stem mounting options, and application-specific designs. Contact our sales team to discuss your requirements.
Q12: What is the typical lead time for this 5 inch heavy duty caster?
A: Standard lead time is typically 20-45 days depending on order quantity, wheel material selection, bearing option, and size specification. For urgent requirements, please contact our sales team for expedited options. Large-volume orders may require additional lead time - we will confirm exact timing at the time of order placement.
