Jiaxing Xingjie Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 5 inch swivel caster wheels in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy premium 5 inch swivel caster wheels made in China here from our factory.
Products Description

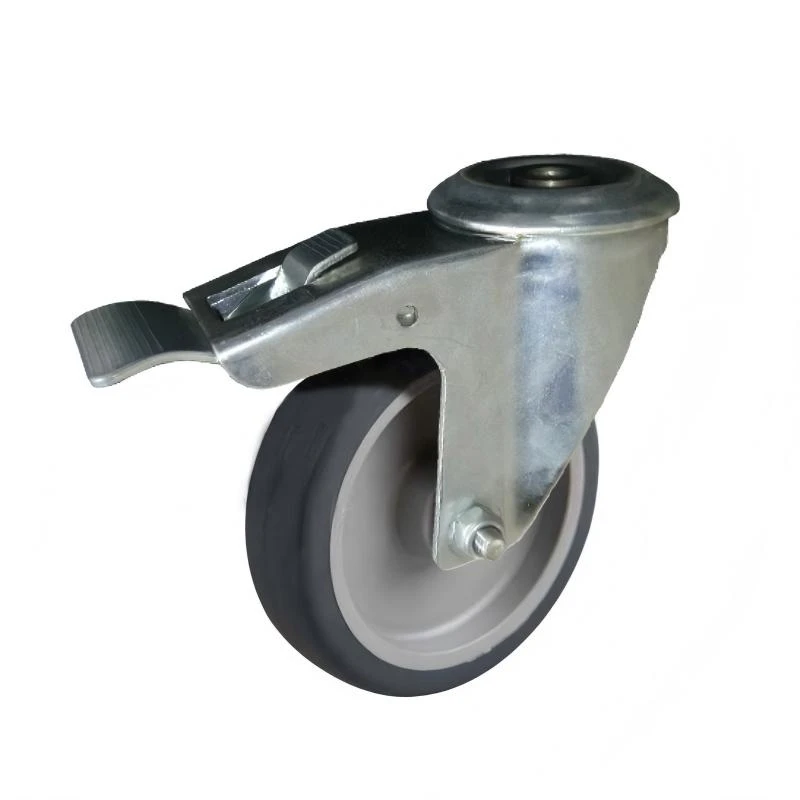

The 5 inch swivel caster wheel is a versatile mobility solution engineered for industrial carts, equipment, material handling carts, and commercial applications. With a 140kg load capacity per caster and total lock brake for complete stationary security, this caster provides reliable support with stable rolling performance, effortless maneuverability, and secure positioning - essential for environments where equipment must be moved efficiently and positioned safely.
The impact on your daily operations: When industrial carts, equipment, and material handling systems need to be repositioned and then secured in place for loading, unloading, or stationary operation, reliable casters with effective braking are essential for safety and efficiency. The TPR wheel delivers quiet, non-marking rolling with excellent shock absorption - protecting floors and reducing noise in workshops and commercial environments. The total lock brake engages with a simple foot press, locking both the wheel and swivel mechanism to keep equipment completely stationary during operation. The hollow kingpin mounting allows for flexible installation using bolts or rivets without protruding stems. The smooth 360° swivel action ensures effortless steering in tight spaces and narrow aisles. The 125mm diameter with 32mm width provides good maneuverability and load distribution.
The TPR (Thermoplastic Rubber) tread offers an optimal balance of quiet operation, floor protection, and rolling efficiency. TPR is widely recognized as one of the best materials for industrial and commercial applications - it is soft enough to protect floors and reduce noise, yet durable enough to withstand daily use. Unlike hard plastic wheels that can mark floors or create noise, TPR provides non-marking performance and a smooth rolling experience. Optional wheel materials (PU, Nylon, PP, Rubber on Cast Iron) and bearing options (Axle Hole, Ball Bearing, Roller Bearing) are available for applications with specific wear resistance, load capacity, or performance requirements.
Available with hollow kingpin mounting (φ12 hole diameter) for flexible attachment using bolts, rivets, or custom fasteners. Available in 4″ and 5″ diameters with multiple wheel material and bearing options. The total lock brake ensures complete stationary security when equipment needs to remain in position - making this 5 inch swivel caster wheel the ideal choice for industrial carts, equipment, and material handling applications.
Technical Specifications
|
Parameter |
Specification |
|
Model No. |
375F3ZNX532-1U |
|
Caster Type |
Swivel Caster with Total Lock Brake (Hollow Kingpin) |
|
Wheel Diameter |
125 mm (5″) |
|
Wheel Width |
32 mm |
|
Wheel Material |
TPR (Thermoplastic Rubber) |
|
Load Capacity |
140 kg per caster |
|
Mounting Type |
Hollow Kingpin (Stemless) - φ12 Hole Diameter |
|
Offset |
40 mm |
|
Load Height |
155 mm |
|
Bearing Options |
Axle Hole, Ball Bearing, Roller Bearing |
|
Available Sizes |
4″, 5″ |
|
Wheel Options |
PU, TPR, Nylon, PP, Rubber on Cast Iron |
Key Features
140kg Load Capacity - reliable support for industrial carts and equipment
TPR Tread for Quiet Operation - non-marking, floor-protective rolling with noise reduction
Total Lock Brake - locks both wheel and swivel for complete stationary security
Hollow Kingpin Mounting - φ12 hole for flexible bolt or rivet attachment
Smooth 360° Swivel Action - effortless steering and maneuverability in tight spaces
Multiple Size, Material & Bearing Options - 4″–5″ sizes with 5 wheel materials and 3 bearing types
Why Choose Xingteng TENG® Casters?
30+ Years of Manufacturing Excellence
Xingteng Group has been manufacturing casters since 1997, with manufacturing origins predating our official registration. With over 30 years of continuous innovation and quality improvement, our experience means we understand not just how to make casters, but how to make them right for your specific application - especially when it comes to swivel casters with brakes for industrial and commercial applications.
ISO 9001:2015 Certified Quality Management
Our quality management system is certified to ISO 9001:2015, ensuring consistent product quality, traceable production processes, and continuous improvement - exactly what industrial buyers expect from a reliable supplier.
TUV Product Certification
Multiple product series have passed TUV testing and certification - proof that our products meet internationally recognized safety and performance standards.
RoHS 2.0 Compliant
All products meet RoHS 2.0 European environmental protection standards, ensuring your supply chain remains compliant with international environmental regulations.
In-House Testing Laboratory
Our dedicated testing facility is equipped with dynamic loading testers, impact testers, static pressure testers, hardness testers, brake life testers, salt spray testers, optical profile projector, and caster creep tester - every 5 inch swivel caster wheel is verified before it leaves our factory.
30,000+ sqm Manufacturing Facility
Annual production capacity exceeding 10 million casters, with over 110 automated production machines including precision injection molding, automatic punching, riveting, and assembly lines.
TENG® - Our Registered Brand
TENG® is registered in China (since 2006) and internationally under the Madrid System in France, Germany, the United States, Japan, Australia, and Canada (since 2012) - proof of our long-term commitment to brand quality and global presence.
FAQ
Q1: What is the load capacity of this 5 inch swivel caster wheel?
A: This 5 inch swivel caster wheel has a load capacity of 140 kg per caster. For carts or equipment with four casters, the total capacity is 560 kg. However, please note that the effective load per caster should be calculated as Total Load ÷ 3 (allowing for uneven weight distribution) rather than Total Load ÷ 4.
Q2: What is a total lock brake and why is it important?
A: A total lock brake locks both the wheel (preventing rolling) and the swivel mechanism (preventing rotation) simultaneously. This is important for: Stationary security - equipment remains completely fixed during loading and use; Safety - prevents unexpected movement on sloping surfaces; Stability - ensures equipment stays in position during operations. This brake type is essential for applications where equipment must remain completely secure when stationary.
Q3: What is hollow kingpin mounting and how does it work?
A: Hollow kingpin mounting (also known as stemless or bolt-hole mounting) uses a hole on the top of the caster for attachment. To mount, position the caster against the equipment and secure it with a bolt, rivet, or custom fastener through the φ12 hole. This design is particularly useful for custom applications where standard stem casters cannot connect - simply slide your bolt through the hollow kingpin center hole and secure it. It provides flexible installation without protruding stems.
Q4: What wheel material options are available for this caster?
A: This caster series is available with five wheel material options: TPR - standard option offering quiet, non-marking operation with floor protection; PU - excellent wear resistance and floor protection; Nylon - superior impact resistance and durability; PP - lightweight and chemical-resistant; Rubber on Cast Iron - superior shock absorption with iron core strength. Choose based on your load, floor type, and application requirements.
Q5: What is the difference between Axle Hole, Ball Bearing, and Roller Bearing?
A: Axle Hole is a simple bearing design where the wheel rotates directly on the axle - cost-effective and suitable for light to moderate loads. Ball Bearing uses precision balls to provide smooth rolling with reduced friction - ideal for applications requiring frequent movement and good performance. Roller Bearing uses cylindrical rollers to handle heavier radial loads - ideal for high-load, slow-speed applications where durability is the priority. Choose based on your load, speed, and performance requirements.
Q6: What equipment is this 5 inch swivel caster wheel suitable for?
A: This 5 inch swivel caster wheel is suitable for: Industrial carts - workshop carts, service carts, and utility carts; Equipment - mobile equipment and machinery stands; Material handling - platform trucks and transfer carts; Warehouse equipment - warehouse carts and trolleys; Commercial equipment - retail fixtures and display stands.
Q7: Is this a steel caster?
A: This caster features a TPR (Thermoplastic Rubber) wheel with a zinc-plated steel bracket - the bracket is made of steel for structural strength and durability. For applications requiring stainless steel casters or specific metal wheels, please contact our sales team for alternative configurations.
Q8: Is this caster suitable for stem mounting?
A: This caster uses hollow kingpin mounting (stemless) - it is not a stem caster. For applications requiring threaded stem casters, we offer alternative configurations. Please contact our sales team to specify your mounting requirements.
Q9: What are the available sizes for this caster series?
A: This caster series is available in 4-inch and 5-inch diameters. The 5-inch option (featured here) offers the best balance of load capacity, rolling efficiency, and load height (155mm) for most industrial applications. The 4-inch option is suitable for applications requiring lower load height or compact size.
Q10: What certifications does Xingteng hold?
A: Xingteng holds ISO 9001:2015 Quality Management certification, TUV Product Certification for multiple product series, and RoHS 2.0 environmental compliance. We are also a recognized AA-level "Contract-Honoring and Credit-Worthy Enterprise" in Zhejiang Province.
Q11: Does Xingteng offer custom caster solutions?
A: Yes. With over 30 years of manufacturing experience and in-house engineering capabilities, we offer custom caster solutions including: special wheel materials, custom hole diameters, specific load capacities, bearing configurations, brake types, and application-specific designs. Contact our sales team to discuss your requirements.
Q12: What is the typical lead time for this 5 inch swivel caster wheel?
A: Standard lead time is typically 20-45 days depending on order quantity, wheel material selection, bearing option, and size specification. For urgent requirements, please contact our sales team for expedited options. Large-volume orders may require additional lead time - we will confirm exact timing at the time of order placement.
