Jiaxing Xingjie Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 6 inch heavy duty casters in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy premium 6 inch heavy duty casters made in China here from our factory.
Products Description

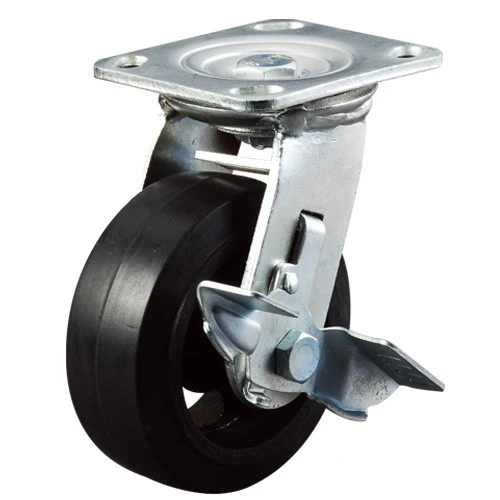

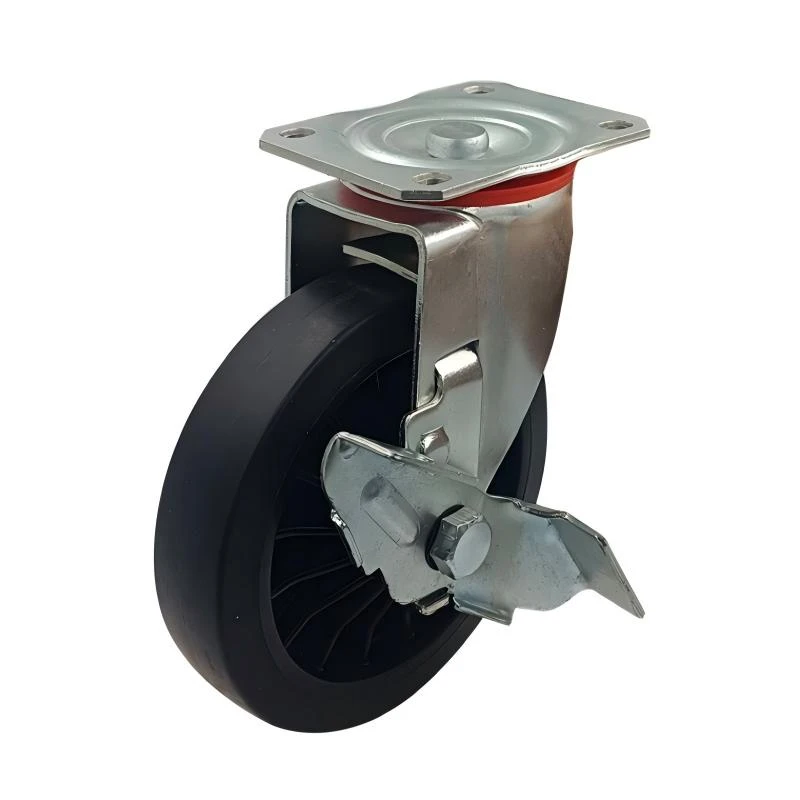

The 6 inch heavy duty caster is a versatile mobility solution engineered for industrial carts, equipment, material handling carts, and demanding workshop applications. With a 250kg load capacity per caster and side brake for wheel locking, this heavy duty caster provides reliable support with stable rolling performance, effortless maneuverability, and secure wheel positioning - essential for industrial environments where equipment must be moved efficiently and positioned safely.
The impact on your daily operations: When industrial carts, equipment, and material handling systems need to be repositioned and then secured in place for loading, unloading, or stationary operation, reliable casters with effective wheel locking are essential for safety and efficiency. The PU wheel delivers excellent floor protection, wear resistance, and low rolling resistance - allowing heavy loads to move smoothly with minimal effort. The side brake engages with a simple foot press, locking the wheel to prevent unwanted rolling while the swivel remains free for directional adjustment. The smooth 360° swivel action ensures effortless steering in tight spaces and narrow aisles. The 150mm diameter with 34mm width provides excellent load distribution and rolling efficiency.
The PU (polyurethane) wheel offers an optimal balance of floor protection, wear resistance, and rolling efficiency. PU provides superior resistance to abrasion, grease, and oil - making it ideal for demanding workshop and industrial environments. Unlike hard plastic wheels that can damage floors or rubber wheels that wear quickly, PU delivers long-lasting performance with smooth, quiet rolling. Optional wheel materials (TPR, Nylon, PP, Rubber, Sandwich) and bearing options (Ball Bearing, Double Ball Bearing) are available for applications with specific floor protection, noise reduction, or performance requirements.
Available with top plate mounting (105 × 80mm, bolt hole spacing 76/80 × 60mm) for secure attachment to industrial carts, equipment, and material handling systems. Available in 5″ and 6″ diameters with multiple wheel material and bearing options. The side brake locks the wheel while the swivel remains free for directional adjustment - making this 6 inch heavy duty caster the ideal choice for industrial carts, equipment, and material handling applications.
Technical Specifications
|
Parameter |
Specification |
|
Model No. |
1036B1ZDX622E |
|
Caster Type |
Swivel Caster with Side Brake |
|
Wheel Diameter |
150 mm (6″) |
|
Wheel Width |
34 mm |
|
Wheel Material |
PU (Polyurethane) |
|
Load Capacity |
250 kg per caster |
|
Mounting Type |
Top Plate |
|
Top Plate Size |
105 × 80 mm |
|
Bolt Hole Spacing |
76 / 80 × 60 mm |
|
Bolt Hole Diameter |
11 × 9 mm |
|
Offset |
40 mm |
|
Load Height |
180 mm |
|
Bearing Options |
Ball Bearing, Double Ball Bearing |
|
Available Sizes |
5″, 6″ |
|
Wheel Options |
PU, TPR, Nylon, PP, Rubber, Sandwich |
Key Features
250kg Load Capacity - heavy-duty support for industrial carts and equipment
PU Wheel - floor-protective, wear-resistant, and grease/oil resistant
Side Brake for Secure Positioning - locks wheel only (swivel remains free for directional adjustment)
Smooth 360° Swivel Action - effortless steering and maneuverability in tight spaces
Top Plate Mounting - 105 × 80mm plate for secure attachment
Multiple Size, Material & Bearing Options - 5″–6″ sizes with 6 wheel materials and 2 bearing types
Why Choose Xingteng TENG® Casters?
30+ Years of Manufacturing Excellence
Xingteng Group has been manufacturing casters since 1997, with manufacturing origins predating our official registration. With over 30 years of continuous innovation and quality improvement, our experience means we understand not just how to make casters, but how to make them right for your specific application - especially when it comes to heavy duty casters with brakes for industrial applications.
ISO 9001:2015 Certified Quality Management
Our quality management system is certified to ISO 9001:2015, ensuring consistent product quality, traceable production processes, and continuous improvement - exactly what industrial buyers expect from a reliable supplier.
TUV Product Certification
Multiple product series have passed TUV testing and certification - proof that our products meet internationally recognized safety and performance standards.
RoHS 2.0 Compliant
All products meet RoHS 2.0 European environmental protection standards, ensuring your supply chain remains compliant with international environmental regulations.
In-House Testing Laboratory
Our dedicated testing facility is equipped with dynamic loading testers, impact testers, static pressure testers, hardness testers, brake life testers, salt spray testers, optical profile projector, and caster creep tester - every 6 inch heavy duty caster is verified before it leaves our factory.
30,000+ sqm Manufacturing Facility
Annual production capacity exceeding 10 million casters, with over 110 automated production machines including precision injection molding, automatic punching, riveting, and assembly lines.
TENG® - Our Registered Brand
TENG® is registered in China (since 2006) and internationally under the Madrid System in France, Germany, the United States, Japan, Australia, and Canada (since 2012) - proof of our long-term commitment to brand quality and global presence.
FAQ
Q1: What is the load capacity of this 6 inch heavy duty caster?
A: This 6 inch heavy duty caster has a load capacity of 250 kg per caster. For industrial carts or equipment with four casters, the total capacity is 1,000 kg. However, please note that the effective load per caster should be calculated as Total Load ÷ 3 (allowing for uneven weight distribution) rather than Total Load ÷ 4.
Q2: What is a side brake and how does it work?
A: A side brake (featured on this model) locks only the wheel by applying external pressure on the tread - preventing rolling movement while the swivel mechanism remains free to rotate for directional adjustment. To engage, simply press the brake lever with your foot; to release, press again. This is ideal for applications where equipment needs to stay in position but may need to be reoriented without releasing the brake.
Q3: What is the difference between a side brake and a total lock brake?
A: A side brake (featured on this model) locks only the wheel - the swivel mechanism remains free to rotate, allowing directional adjustment even when stationary. A total lock brake locks both the wheel and the swivel mechanism, completely fixing the caster in position. Choose side brake for applications where directional flexibility while locked is beneficial; choose total lock brake for complete stationary security on sloping surfaces or where equipment must remain completely fixed.
Q4: What wheel material options are available for this caster?
A: This caster series is available with six wheel material options: PU - standard option offering excellent floor protection, wear resistance, and oil/grease resistance; TPR - quiet, non-marking operation; Nylon - superior impact resistance and durability; PP - lightweight and chemical-resistant; Rubber - superior shock absorption for uneven surfaces; Sandwich - combines materials for balanced performance. Choose based on your load, floor type, and application requirements.
Q5: What is the difference between Ball Bearing and Double Ball Bearing?
A: Ball Bearing uses a single row of precision balls to provide smooth rolling with reduced friction - suitable for most industrial applications requiring reliable performance. Double Ball Bearing uses two rows of balls to handle both radial and moderate thrust loads - providing even smoother rolling, better load distribution, and longer service life. Choose Double Ball Bearing for applications requiring frequent movement and superior performance; choose Ball Bearing for standard industrial applications.
Q6: What equipment is this 6 inch heavy duty caster suitable for?
A: This 6 inch heavy duty caster is suitable for: Industrial carts - workshop carts, service carts, and utility carts; Equipment - mobile equipment and machinery stands; Material handling - platform trucks and transfer carts; Warehouse equipment - heavy-duty warehouse carts and trolleys; Industrial applications - demanding environments requiring reliable mobility.
Q7: Is this a steel caster?
A: This caster features a PU (polyurethane) wheel with a zinc-plated steel bracket - the bracket is made of steel for structural strength and durability. For applications requiring stainless steel casters or specific metal wheels, please contact our sales team for alternative configurations.
Q8: Is this a pneumatic caster?
A: No. This caster features a solid PU wheel - it is not a pneumatic (air-filled) caster. Solid PU wheels offer several advantages over pneumatic casters: No maintenance - no air pressure to check; Puncture-proof - immune to flats and leaks; High load capacity - supports heavy loads without deformation; Longer service life - more durable in demanding environments. For applications requiring pneumatic casters, please contact our sales team for alternative product recommendations.
Q9: What are the available sizes for this caster series?
A: This caster series is available in 5-inch and 6-inch diameters. The 6-inch option (featured here) offers the best rolling efficiency over floor transitions with a 180mm load height. The 5-inch option is suitable for applications requiring lower load height or compact size.
Q10: What is the mounting specification for this caster?
A: This caster uses top plate mounting with the following specifications: Top plate size - 105 × 80mm; Bolt hole spacing - 76 / 80 × 60mm; Bolt hole diameter - 11 × 9mm (slotted holes for adjustment flexibility). This mounting pattern is compatible with many standard industrial cart and equipment configurations. Please confirm compatibility with your equipment before ordering.
Q11: What certifications does Xingteng hold?
A: Xingteng holds ISO 9001:2015 Quality Management certification, TUV Product Certification for multiple product series, and RoHS 2.0 environmental compliance. We are also a recognized AA-level "Contract-Honoring and Credit-Worthy Enterprise" in Zhejiang Province.
Q12: What is the typical lead time for this 6 inch heavy duty caster?
A: Standard lead time is typically 20-45 days depending on order quantity, wheel material selection, bearing option, and size specification. For urgent requirements, please contact our sales team for expedited options. Large-volume orders may require additional lead time - we will confirm exact timing at the time of order placement.
