Products Description

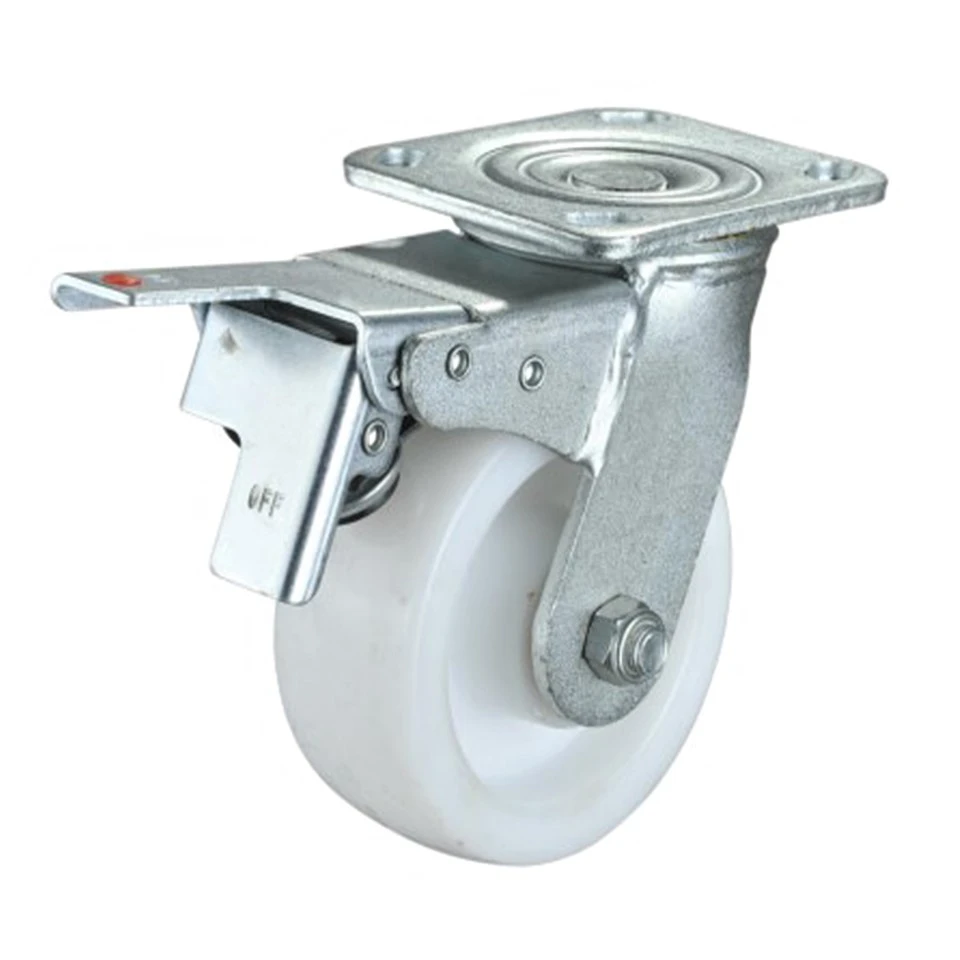

The heavy duty caster wheel with brake is a high-performance mobility solution engineered for heavy equipment, industrial machinery, workbenches, and demanding workshop applications. With a 300kg load capacity per caster and total lock brake for secure positioning, this heavy duty caster provides reliable support with smooth 360° swiveling, exceptional durability, and complete stationary security - essential for industrial environments where heavy loads must be moved efficiently and positioned safely.
The impact on your daily operations: When heavy equipment, workbenches, and machinery need to be repositioned for maintenance, reconfiguration, or installation, reliable high-capacity casters with effective braking are essential for safety and efficiency. The nylon wheel delivers exceptional impact resistance and low rolling resistance - making heavy loads easier to move with controlled effort. The total lock brake engages with a simple press, locking both the wheel and swivel mechanism to keep equipment securely in place during loading, unloading, and operation.
The nylon wheel offers exceptional impact resistance, wear resistance, and low rolling resistance - making it ideal for demanding industrial environments where casters encounter floor joints, debris, and constant use. Nylon maintains its structural integrity under heavy loads, resists deformation, and provides reliable performance even in high-traffic industrial operations. The 125mm diameter with 50mm width provides excellent rolling efficiency and load distribution. Optional wheel materials (PU, TPR, PP, Cast Iron, PU on Iron, Rubber on Cast Iron) and bearing options (Roller Bearing, Double Ball Bearing) are available for applications with specific floor protection, noise reduction, shock absorption, or extreme load requirements.
Available with robust top plate mounting for secure attachment to heavy equipment, workbenches, and machinery. Available in 4″, 5″, 6″, and 8″ diameters with multiple wheel material and bearing options. The total lock brake ensures complete stationary security when equipment needs to remain in position - making this heavy duty caster wheel the ideal choice for demanding industrial applications.
Technical Specifications
|
Parameter |
Specification |
|
Model No. |
815F1ZDX527N |
|
Caster Type |
Swivel Caster with Total Lock Brake |
|
Wheel Diameter |
125 mm (5″) - 4″, 6″, 8″ available |
|
Wheel Width |
50 mm |
|
Wheel Material |
Nylon |
|
Load Capacity |
300 kg per caster |
|
Mounting Type |
Top Plate |
|
Load Height |
170 mm |
|
Bearing Options |
Roller Bearing, Double Ball Bearing |
|
Wheel Options |
PU, TPR, Nylon, PP, Cast Iron, PU on Iron, Rubber on Cast Iron |
Key Features
300kg Load Capacity - reliable support for heavy equipment and machinery
Nylon Wheel - impact-resistant, wear-resistant, low rolling resistance
Total Lock Brake - locks both wheel and swivel for complete stationary security
Smooth 360° Swivel Action - effortless steering and maneuverability
Robust Top Plate Mounting - secure attachment for heavy equipment and workbenches
Multiple Size, Material & Bearing Options - 4″–8″ sizes with 7 wheel materials and 2 bearing types
Why Choose Xingteng TENG® Casters?
30+ Years of Manufacturing Excellence
Xingteng Group has been manufacturing casters since 1997, with manufacturing origins predating our official registration. With over 30 years of continuous innovation and quality improvement, our experience means we understand not just how to make casters, but how to make them right for your specific application - especially when it comes to heavy duty caster wheels with brakes for demanding industrial environments.
ISO 9001:2015 Certified Quality Management
Our quality management system is certified to ISO 9001:2015, ensuring consistent product quality, traceable production processes, and continuous improvement - exactly what industrial buyers expect from a reliable supplier.
TUV Product Certification
Multiple product series have passed TUV testing and certification - proof that our products meet internationally recognized safety and performance standards.
RoHS 2.0 Compliant
All products meet RoHS 2.0 European environmental protection standards, ensuring your supply chain remains compliant with international environmental regulations.
In-House Testing Laboratory
Our dedicated testing facility is equipped with dynamic loading testers, impact testers, static pressure testers, hardness testers, brake life testers, salt spray testers, optical profile projector, and caster creep tester - every heavy duty caster wheel with brake is verified before it leaves our factory.
30,000+ sqm Manufacturing Facility
Annual production capacity exceeding 10 million casters, with over 110 automated production machines including precision injection molding, automatic punching, riveting, and assembly lines.
TENG® - Our Registered Brand
TENG® is registered in China (since 2006) and internationally under the Madrid System in France, Germany, the United States, Japan, Australia, and Canada (since 2012) - proof of our long-term commitment to brand quality and global presence.
FAQ
Q1: What is the load capacity of this heavy duty caster wheel with brake?
A: This heavy duty caster wheel has a load capacity of 300 kg per caster. For heavy equipment or workbenches with four casters, the total capacity is 1,200 kg. However, please note that the effective load per caster should be calculated as Total Load ÷ 3 (allowing for uneven weight distribution) rather than Total Load ÷ 4.
Q2: What is a total lock brake and why is it important for heavy equipment?
A: A total lock brake locks both the wheel (preventing rolling) and the swivel mechanism (preventing rotation) simultaneously. This is critical for heavy equipment because: Safety - equipment remains completely fixed during loading and unloading; Stability - prevents unexpected movement on sloping surfaces; Worker protection - reduces the risk of injury during maintenance and operations. This brake type is essential for applications where equipment must remain completely secure when stationary.
Q3: What wheel material options are available for this heavy duty caster?
A: This heavy duty caster series is available with seven wheel material options: Nylon - standard option offering superior impact resistance and low rolling resistance; PU - excellent wear resistance and floor protection; TPR - quiet, non-marking operation; PP - lightweight and chemical-resistant; Cast Iron - extreme durability for the heaviest loads; PU on Iron - combines PU tread with cast iron core; Rubber on Cast Iron - superior shock absorption with iron core strength. Choose based on your load, floor type, and application requirements.
Q4: What is the difference between Roller Bearing and Double Ball Bearing?
A: Roller Bearings use cylindrical rollers to handle heavier radial loads, making them ideal for high-load, slow-speed applications where durability is the priority - recommended for heavy equipment and machinery. Double Ball Bearings use two rows of balls to handle both radial and moderate thrust loads, providing smoother rolling with less friction - ideal for applications requiring frequent movement and maneuverability. Choose based on your load, speed, and maneuverability requirements.
Q5: What equipment is this heavy duty caster wheel suitable for?
A: This heavy duty caster wheel is suitable for: Heavy equipment - industrial machinery and large equipment; Heavy workbenches - heavy-duty workshop workbenches; Industrial carts - heavy-duty platform trucks and material handling carts; Moving heavy loads - equipment relocation and positioning; Factory machinery - production line equipment and machine stands.
Q6: What are the available sizes for this heavy duty caster wheel?
A: This heavy duty caster wheel is available in 4-inch, 5-inch, 6-inch, and 8-inch diameters. The 5-inch option (featured here) offers the best balance of load capacity, rolling efficiency, and load height (170mm). 4-inch is suitable for applications requiring lower load height; 6-inch and 8-inch offer superior rolling efficiency over floor transitions and higher load heights. Choose based on your equipment design and floor conditions.
Q7: Is this caster suitable for large equipment applications?
A: Yes. This caster is suitable for large equipment applications requiring 300kg load capacity with secure braking. For extremely large equipment exceeding this capacity, we offer higher capacity models up to 2000kg - please contact our sales team for recommendations based on your specific application requirements.
Q8: What is the difference between this caster and standard duty casters?
A: This heavy duty caster is specifically designed for heavy industrial applications: 300kg load capacity vs 50-100kg for standard duty; 125 × 50mm wheel for stability; Total lock brake for complete stationary security; Robust construction for demanding environments. Standard duty casters are not suitable for heavy equipment or machinery.
Q9: How does the 170mm load height benefit heavy equipment applications?
A: The 170mm load height provides: Adequate clearance - sufficient space for equipment base and floor clearance; Stability - appropriate center of gravity for equipment stability; Ergonomic handling - comfortable height for maneuvering heavy loads; Floor clearance - enough clearance for floor irregularities without bottoming out.
Q10: What certifications does Xingteng hold?
A: Xingteng holds ISO 9001:2015 Quality Management certification, TUV Product Certification for multiple product series, and RoHS 2.0 environmental compliance. We are also a recognized AA-level "Contract-Honoring and Credit-Worthy Enterprise" in Zhejiang Province.
Q11: Does Xingteng offer custom heavy duty caster solutions with brakes?
A: Yes. With over 30 years of manufacturing experience and in-house engineering capabilities, we offer custom caster solutions including: special wheel materials, custom mounting plates, specific load capacities, bearing configurations, and application-specific designs. Contact our sales team to discuss your requirements.
Q12: What is the typical lead time for this heavy duty caster wheel with brake?
A: Standard lead time is typically 20-45 days depending on order quantity, wheel material selection, bearing configuration, and size specification. For urgent requirements, please contact our sales team for expedited options. Large-volume orders may require additional lead time - we will confirm exact timing at the time of order placement.
