Products Description

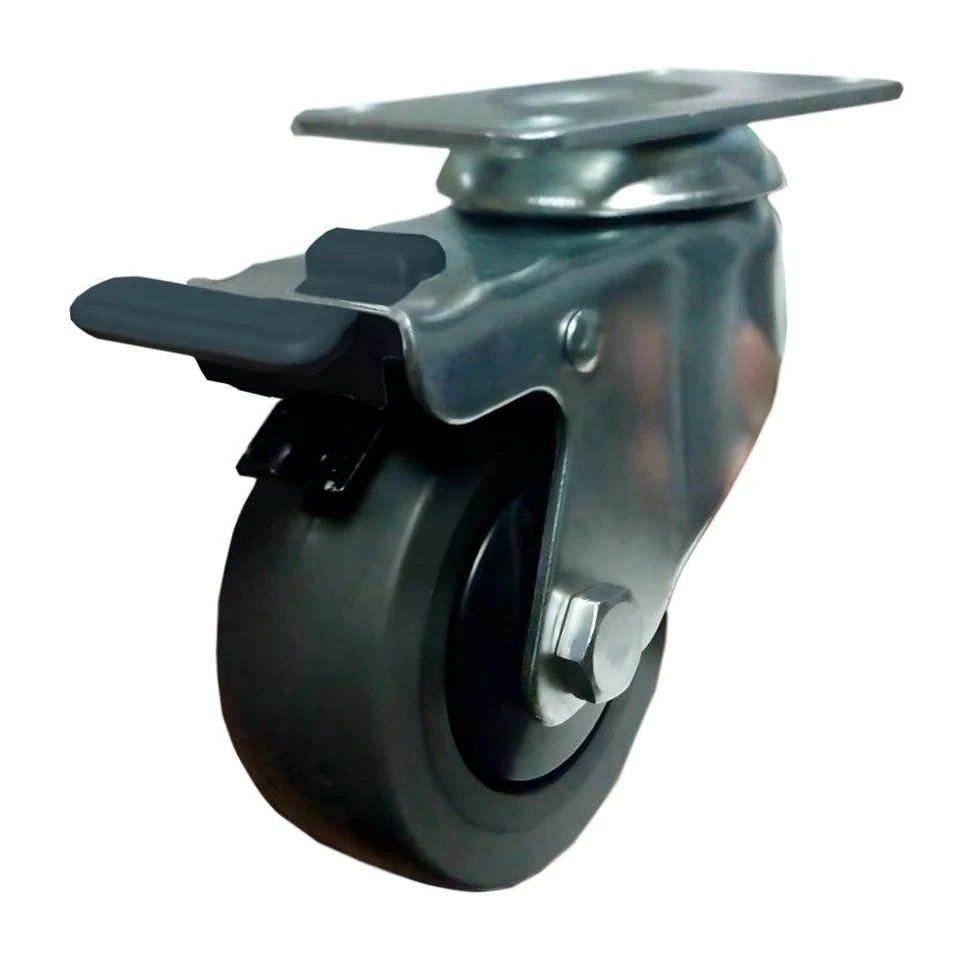

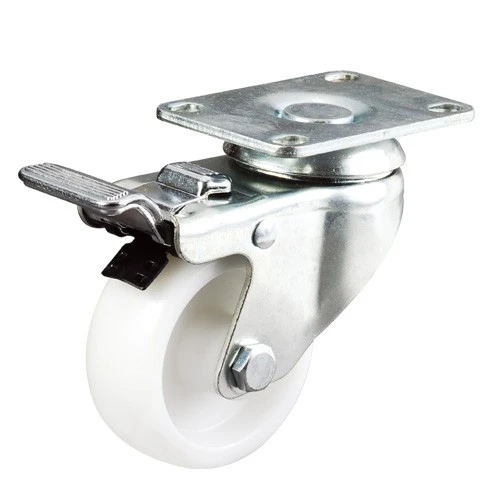

The swivel caster with brake is a versatile mobility solution engineered for light to medium equipment, carts, workstations, and industrial applications. With a 100kg load capacity per caster and total lock brake for secure positioning, this caster provides reliable support with smooth 360° swiveling, durability, and complete stationary security - essential for environments where equipment needs to be moved efficiently and positioned safely.
The impact on your daily operations: When equipment, carts, and workstations need to be repositioned for reconfiguration, cleaning, or daily operation, reliable casters with effective braking make the difference between efficient workflow and safety concerns. The nylon wheel delivers excellent wear resistance and low rolling resistance - making loads easier to move with minimal effort. The total lock brake engages with a simple action, locking both the wheel and swivel mechanism to keep equipment securely in place during loading, unloading, and operation.
The nylon wheel offers excellent wear resistance, impact strength, and low rolling resistance - making it ideal for light to medium industrial applications where reliability and smooth operation are essential. Nylon maintains its structural integrity under moderate loads, resists wear from frequent use, and performs consistently across a range of floor types. The 100mm diameter provides good rolling efficiency and maneuverability. Optional wheel materials (PU, TPR, PP, Rubber) and bearing options (Axle Hole, Ball Bearing) are available for applications with specific floor protection, noise reduction, or performance requirements.
Available with spring stem mounting (φ22.5 × 53mm) for quick, secure attachment to equipment and carts. Available in 3″, 4″, 5″, and 6″ diameters with multiple wheel material and bearing options. The total lock brake ensures complete stationary security when equipment needs to remain in position - making this swivel caster the ideal choice for light to medium industrial applications.
Technical Specifications
|
Parameter |
Specification |
|
Model No. |
314D4ZSX417N |
|
Caster Type |
Swivel Caster with Total Lock Brake |
|
Wheel Diameter |
100 mm (4″) - 3″, 5″, 6″ available |
|
Wheel Width |
32 mm |
|
Wheel Material |
Nylon |
|
Load Capacity |
100 kg per caster |
|
Mounting Type |
Spring Stem - φ22.5 × 53 mm |
|
Offset |
38 mm |
|
Load Height |
130 mm |
|
Bearing Options |
Axle Hole, Ball Bearing |
|
Wheel Options |
PU, TPR, Nylon, PP, Rubber |
Key Features
100kg Load Capacity - reliable support for light to medium equipment and carts
Nylon Wheel - wear-resistant, impact-resistant, low rolling resistance
Total Lock Brake - locks both wheel and swivel for complete stationary security
Spring Stem Mounting - φ22.5 × 53mm for quick, secure attachment
Smooth 360° Swivel Action - effortless steering and maneuverability
Multiple Size, Material & Bearing Options - 3″–6″ sizes with 5 wheel materials and 2 bearing types
Why Choose Xingteng TENG® Casters?
30+ Years of Manufacturing Excellence
Xingteng Group has been manufacturing casters since 1997, with manufacturing origins predating our official registration. With over 30 years of continuous innovation and quality improvement, our experience means we understand not just how to make casters, but how to make them right for your specific application - especially when it comes to swivel casters with brakes for light to medium industrial environments.
ISO 9001:2015 Certified Quality Management
Our quality management system is certified to ISO 9001:2015, ensuring consistent product quality, traceable production processes, and continuous improvement - exactly what industrial buyers expect from a reliable supplier.
TUV Product Certification
Multiple product series have passed TUV testing and certification - proof that our products meet internationally recognized safety and performance standards.
RoHS 2.0 Compliant
All products meet RoHS 2.0 European environmental protection standards, ensuring your supply chain remains compliant with international environmental regulations.
In-House Testing Laboratory
Our dedicated testing facility is equipped with dynamic loading testers, impact testers, static pressure testers, hardness testers, brake life testers, salt spray testers, optical profile projector, and caster creep tester - every swivel caster with brake is verified before it leaves our factory.
30,000+ sqm Manufacturing Facility
Annual production capacity exceeding 10 million casters, with over 110 automated production machines including precision injection molding, automatic punching, riveting, and assembly lines.
TENG® - Our Registered Brand
TENG® is registered in China (since 2006) and internationally under the Madrid System in France, Germany, the United States, Japan, Australia, and Canada (since 2012) - proof of our long-term commitment to brand quality and global presence.
FAQ
Q1: What is the load capacity of this swivel caster with brake?
A: This swivel caster has a load capacity of 100 kg per caster. For equipment or carts with four casters, the total capacity is 400 kg. However, please note that the effective load per caster should be calculated as Total Load ÷ 3 (allowing for uneven weight distribution) rather than Total Load ÷ 4.
Q2: What is a total lock brake and why is it important?
A: A total lock brake locks both the wheel (preventing rolling) and the swivel mechanism (preventing rotation) simultaneously. This is important for: Stationary security - equipment remains completely fixed during loading and use; Safety - prevents unexpected movement on sloping surfaces; Stability - ensures equipment stays in position during operations. This brake type is essential for applications where equipment must remain completely secure when stationary.
Q3: What is the difference between a total lock brake and a wheel brake?
A: A total lock brake (featured on this model) locks both the wheel and the swivel mechanism, completely immobilizing the caster. A wheel brake (or side brake) locks only the wheel - the swivel remains free to rotate, allowing directional adjustment even when stationary. Choose total lock brake for complete stationary security; choose wheel brake for applications where directional flexibility while locked is beneficial.
Q4: What wheel material options are available for this caster?
A: This caster series is available with five wheel material options: Nylon - standard option offering excellent wear resistance, impact strength, and low rolling resistance; PU - excellent floor protection and wear resistance; TPR - quiet, non-marking operation; PP - lightweight and chemical-resistant; Rubber - superior shock absorption for uneven surfaces. Choose based on your load, floor type, and application requirements.
Q5: What is the difference between Axle Hole and Ball Bearing options?
A: Axle Hole is a simple bearing design where the wheel rotates directly on the axle - cost-effective and suitable for light to medium loads with moderate use. Ball Bearing uses precision ball bearings to provide smoother rolling with reduced friction - ideal for applications requiring frequent movement, smoother operation, and longer service life. Choose Axle Hole for cost-sensitive applications; choose Ball Bearing for enhanced performance and durability.
Q6: What equipment is this swivel caster suitable for?
A: This swivel caster is suitable for: Light to medium carts - workshop carts, service carts, and utility carts; Workstations - mobile workstations and assembly stations; Display equipment - retail displays, exhibition stands, and fixtures; Industrial equipment - small machinery and light equipment; Furniture - heavy furniture and worktables requiring mobility.
Q7: What is the mounting specification for this caster?
A: This caster uses spring stem mounting with the following specification: Stem diameter - φ22.5mm; Stem length - 53mm. This spring stem design provides quick, secure attachment to equipment and carts. Please confirm compatibility with your equipment before ordering.
Q8: Is this caster suitable for stainless steel applications?
A: This caster features a standard steel housing with zinc plating. For applications requiring stainless steel casters (such as food processing, pharmaceutical, or corrosive environments), we offer stainless steel configurations upon request. Please contact our sales team to specify your requirements.
Q9: What is the difference between this caster and heavy duty casters?
A: This swivel caster is specifically designed for light to medium applications: 100kg load capacity, 100mm wheel diameter, 130mm load height, suitable for carts, workstations, and light equipment. Heavy duty casters feature 300kg+ load capacity with larger wheels and heavier construction - designed for machinery and extreme loads. Choose this caster for light to medium equipment; choose heavy duty casters for heavy machinery and extreme loads.
Q10: What certifications does Xingteng hold?
A: Xingteng holds ISO 9001:2015 Quality Management certification, TUV Product Certification for multiple product series, and RoHS 2.0 environmental compliance. We are also a recognized AA-level "Contract-Honoring and Credit-Worthy Enterprise" in Zhejiang Province.
Q11: Does Xingteng offer custom swivel caster solutions with brakes?
A: Yes. With over 30 years of manufacturing experience and in-house engineering capabilities, we offer custom caster solutions including: special wheel materials, custom stem sizes, specific load capacities, bearing configurations, and application-specific designs. Contact our sales team to discuss your requirements.
Q12: What is the typical lead time for this swivel caster with brake?
A: Standard lead time is typically 20-45 days depending on order quantity, wheel material selection, bearing option, and size specification. For urgent requirements, please contact our sales team for expedited options. Large-volume orders may require additional lead time - we will confirm exact timing at the time of order placement.
